Electromechanical impedance (EMI) based totally lead zirconate titanate (PZT) is an powerful sensor to make certain the safety of structure. In civil engineering community, bolstered Concrete (RC) structure is one of the maximum familiar engineering systems.
1. Introduction
as a result, it’s far very critical to reveal the health of shape. on this paper, a new method of structural health tracking the use of embedded PZT in host shape is proposed. There are numerous issues at the same time as embedding PZT internal RC structure which are examined all through examine. This paper gives experimental studies on lab sized concrete beams. First implementation changed into executed with exclusive techniques of embedment of PZT and its sensitivity look at whilst the host shape changed into subjected to damage. the second implementation become proven in phrases of conductance sensitivity of embedded clever combination (SMAG) in varying orientation i.e. horizontal (0˚) and vertical (90˚) after embedding in RC beam. the electrical conductance and susceptance signatures of different embedded PZT transducers were measured and harm index became calculated through the usage of Root suggest rectangular Deviation approach.
around the arena, fitness monitoring of concrete shape has been gambling an important function in the development of civil engineering. Structural health monitoring (SHM) is a method of monitoring the present situation of engineering structures. Many techniques for SHM had been stated in recent years. furthermore, there are several conflicts at the same time as tracking health of concrete structure. This paper presents a brand new method of fitness monitoring of shape primarily based on electromechanical Impedance (EMI) technique the use of embedded PZT sensors.
in advance several authors have additionally proposed the SHM by the usage of PZT clever sensors. Shanker [1] proposed the experimental observe on embedded PZT as a sensor by the use of EMI method. A simple low price experimental method became developed to extract the experimental stress mode shapes of the shape without delay by way of the usage of a surface bonded and embedded PZT sensor. It changed into found that harm starting from incipient to near failure (intense) can be located and quantified by means of the usage of the EMI technique and the experimental mode shapes with favored accuracy. Annamdas et al. [2] proposed a technique of embedding PZT sensor in concrete for tracking concrete. The implementation turned into tested on numerous lab sized concrete cubes and the observations had been examined by statistical evaluation. Wang et al. [3] proposed a fitness monitoring method based totally on EMI measurements, which used the electromechanical coupling belongings of embedded PZT transducers. Khante and Gedam [4] experimentally monitored the health of RC shape with the aid of embedding indigenously prepared PZT based totally smart aggregate in two phases i.e. for wholesome and damaged country of RC specimen. Dumoulin et al. [5] studied crack propagation in a bolstered concrete beam via the usage of PZT sensor. two specific varieties of excitation signals had been used (pulse and chirp) and the ensuing waves have been recorded at the receivers. based on those indicators, one-of-a-kind damage indicators had been investigated and in comparison. Kaur et al. [6] investigated the integrity of the low-fee EMI technique and the global vibration method for health evaluation. Fourteen CVS were embedded inner a RC beam, whilst casting, to attain the primary curvature mode shape of the RC beam.
a method shape curvature primarily based algorithm changed into followed for damage detection and severity evaluation. track et al. [7] proposed the smart aggregates as a multifunctional tool for health monitoring. A damage index based totally on the wavelet packet analysis was used to decide the structural health status. Negi et al. [8] orientated PZT patches in different configuration in host shape. Visalakshi and Bhalla [9] proposed a evaluation among the sensing abilities of surface bonded and embedded piezoceramic (PZT) patches in corrosion assessment for RC structures.
multiplied corrosion checks were executed on RC specimens, and the statistical index and the equivalent parameters were as compared for the two sorts of sensor configurations. B. Xu et al. [10] proposed a PZT based energetic interface debonding defect detection approach for multi-chamber metal bolstered Concrete (SRC) columns and confirmed experimentally with an abnormal multi-chamber SRC specimen. some of embedded piezo-based totally functional elements (EPFEs) established near the steel plates and piezoelectric ceramic (PZT) patches bonded at the floor of the steel plates have been used as actuators and sensors respectively. primarily based at the amplitude of the dimension of the PZT patches below sinusoidal excitations and the wavelet packet power underneath sweep sinusoidal indicators, the interface debonding defects was detected efficaciously. Zhu et al. [11] offered the design and fabrication procedures of EMI sensors embedded into concrete structures. primarily based on the electrical admittance and stress measurements, the fitness statuses of the non-stop inflexible frame bridge was monitored and evaluated efficaciously in the creation.
2. Health Monitoring Based on Electro-Mechanical Impedance (EMI) Technique

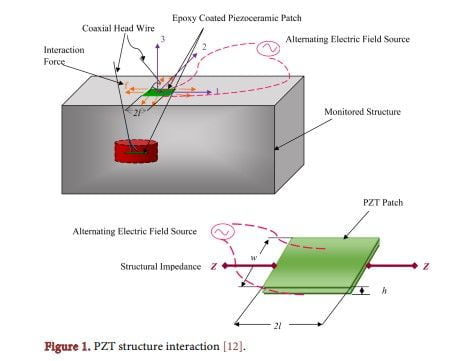

The piezoelectric patch has a unique property to act as both sensor and actuator and can be easily surface bonded or embedded inside host structure. When mechanical stress is applied on PZT patch it produces an electrical charge, which is called as direct piezoelectric effect of PZT. The governing principle of EMI based health monitoring method is to monitor the changes in structure by measuring admittance signature of EMI active sensor bonded onto or embedded into the structure as shown in Figure 1
Equation (1) below represents the complex electro-mechanical admittance Ȳ of the system.
( ) ( ) ( ) 2 2
33 31 31
tan 2 wl T Za E E kl Y j dY dY
h Z Za kl
ω ε
= + − + (1)
where, l, w and h are the length, width and thickness of the PZT patch respectively, j being imaginary number equal to ( −1 ), ω is angular frequency and kl is the wave number, (ε33)
T is the complex electric permittivity at constant stress, Za is mechanical impedance of the PZT patch, d31 is the piezoelectric strain coefficient of the PZT material, ȲE is the complex Young’s modulus under constant electric field, Z is the mechanical impedance of the host structure.
In EMI based method, high frequencies in the order of few kHz to hundred kHz are used. Mechanical impedance of the host structure is the function of its mass, stiffness, and damping properties. Any changes in admittance signature indicate the presence of structural damage and simultaneously structural properties also changes. The electroechanical admittance Y consists of the real and the imaginary component called conductance and susceptance respectively. Hence, the magnitude of complex admittance can be calculated as given in Equation (2):
2 2 Y GB = + (2)
where, G = Conductance; real part of admittance, B = Susceptance; imaginary part of admittance. Damage characterization is accomplished by using root mean square deviation method (RMSD). Electrical impedance signatures are compared with each other in which one of the signature known as baseline signature is acquired when the structure is considered to be healthy. The RMSD index compares baseline signature and signature obtained in damaged condition of structure measured over preset frequency range respectively. RMSD of the signature is given by Equation (3),
( ) ( )
2
2 1
2
1
100 %
G G
M
G
− = × ∑
∑ (3)
where, M = Damage metric (Root Mean Square Deviation), G1 = Conductance before damage, G2 = Conductance after damage. 3. Fabrication of Embedded Smart Aggregate (SMAG) Smart Aggregates (SMAGs) are thin PZT transducers casted in small mortar pieces. The PZT transducer is very fragile and can be easily damaged by the vibrator during the casting of concrete structures. The robust PZT patch should be protected in the form of
smart aggregate and embedded at the desired position in the concrete structure before casting, eliminating the risk of damaging the transducer during the vibrating process. The method of fabrication was carried out as explained below. Step 1: A typical PZT patch of size 10 × 10 × 0.2 mm and 5H grade manufactured by Central Electronics Limited, Sahibabad, Delhi was selected to embed into structure
